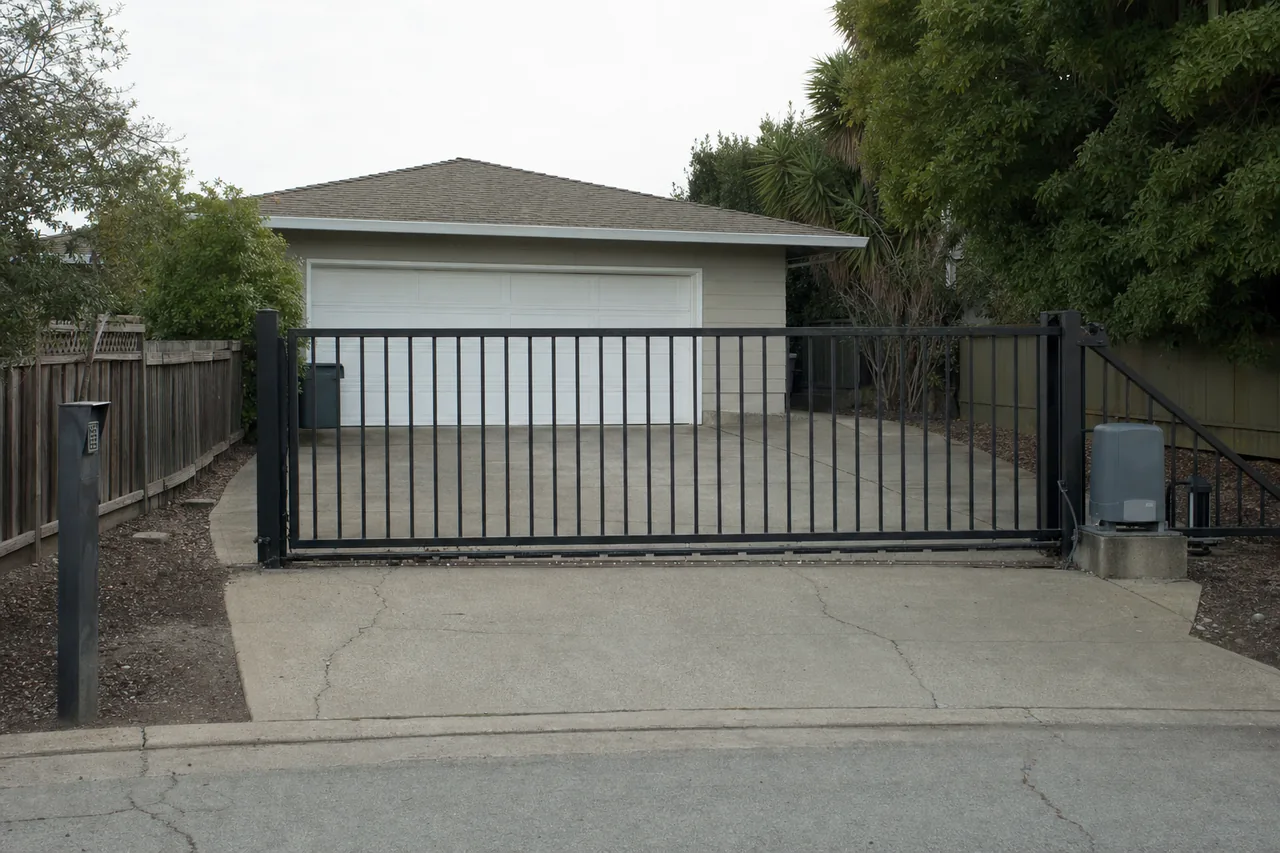

Gate opener repair in Springfield for swing and slide operators

A gate operator packs a lot into one weatherproof box: a motor and gearbox, the circuit board that makes decisions, a transformer or battery to feed it, the safety devices that keep it from hurting anyone, and a receiver listening for your remote.

Every bit of it rides out muggy Augusts, spring lightning and January ice in the open air, so gate operators ask for more care than anything on your garage ceiling.

Linear-arm and articulated-arm swing units, chain and rack slide units, operators hidden under the hinge, solar and hardwired: all on our list.

Out on acreage, solar is common because trenching a line down a long lane rarely makes sense. Closer to the house, gates are usually wired in, and each kind has its own quirks.

• It opens fine, then won't close, or turns back the moment it starts.
• It works in the morning and gives up by evening.
• It sails past its stop, or quits early, always at the same spot.
• Your remote works only when you're nearly at the gate.
• The keypad or intercom has gone quiet, or shrugs off the code.
• You pull in and the gate is already open, with nobody home.
• It manages a few trips, the box feels warm, then nothing.

Photo eyes watch the opening, rubber edges feel for a bump, and loops notice metal parked above them. A current-standard operator refuses to finish closing without them, so one bad device strands the gate open.

We won't disconnect a safety device to get a gate closing. We fix or replace the device, because a gate closing blind can pin a vehicle or a person.

Whatever the symptom, we start at the power source: transformer, battery, fuses and every low-voltage splice between them. A lot of operators written off as dead are really just starving.

Battery and solar units weaken gradually, so the gate gets lazier before it quits. A run of overcast December days is usually what unmasks a battery that began slipping back in July.

Storm surges are the other big one. A board or receiver that was fine at supper can be gone by breakfast, and we look for storm damage whenever the timing points that way.

Remotes, keypads, exit wands, loops, intercoms and phone-entry boxes are the parts you touch every day, and they wear out on their own clocks.

On gates shared by several homes, years of handed-out codes and missing remotes pile up. Clearing the receiver and issuing fresh codes is often part of the same visit.

Put up a new metal fence or changed your internet router since the gate last behaved? Mention it. Either can interfere with receivers and phone-entry units.

Same for a new outbuilding, a satellite dish or a big metal carport near the operator. Anything large and metal between the gate and the road can cut the range of a remote.

Swing units shove and pull the leaf through an arm; slide units crawl a chain or a toothed rack along the gate. They break in slightly different ways, and we chase both the same way.

Buried units under the hinge are the exception. They live in a box below ground, where water, mud and roots are their enemies, so the drain has to stay clear and the box needs a yearly look.

They also tend to sit right where sprinklers and downspouts empty, so we check where the water goes after a storm.

You get a couple of hours to be around and a call when we're on the way, with the likeliest parts already aboard, so most visits finish in one trip.

1. PowerHouse current or transformer, battery or solar, measured under load, plus fuses and connections.
2. BoardInputs and outputs, stop points and settings, and any scorch marks a storm left behind.
3. SafetyEvery eye, edge and loop allowed to stop your gate, tested one by one.
4. DriveCapacitor, gearbox, arm or chain, and whether a drooping leaf has been working the motor too hard.
5. ControlsReceivers, remotes, keypads and intercoms working before we pull away.

Humid summers and ice storms are tough on circuit boards. Damp works into housings, eats at terminals and fogs the eyes, and ice can weld a gate to its latch.

Housings that left the factory sealed often aren't anymore. A split gasket or a lost grommet lets water and wasps move in, and the board takes the hit.

A fall checkup catches most of it: battery load test, stop points confirmed, hinges and rollers greased, seals inspected, and each safety device run with the gate in motion.

LiftMaster, Chamberlain, Nice and Apollo, US Automatic, Viking, DoorKing, FAAC, Elite, Mighty Mule and GTO turn up most. For anything unusual, send a snapshot of the label and we'll order the right part.

Any lights on the operator? A click, a hum or nothing? Did a storm or a power blink come first? Did every control quit, or just one? That's enough to load the right parts.

Please don't jumper around a photo eye or edge, and don't keep firing the motor at a gate that won't move. Either one grows a small repair into a big one.

If the gate's stuck open and needs shutting for the night, tell us. We'll close and secure it by hand first, even if a part is on order.

Call from Springfield, Nixa, Ozark, Republic or Strafford and tell us what the operator's doing. We'll give you a couple of hours to be home and ring when we're headed your way.

Free estimate.
